vs EDLC / ultracapacitor
Higher energy per cell, lower cell count for the same backup time. Same pulse life class.
Select the Model Around the Real Load Profile
-
Model-Specific Electrical Data: Compare charging voltage, capacity, resistance, continuous current and physical size.
-
Multiple Integration Levels: Evaluate a single HPC cell, multi-cell module, ER + HPC pack or application-specific assembly.
-
Validation Before Production: Confirm the selected model against the real pulse waveform, minimum voltage and worst-case temperature.
Compare battery-style rechargeable HPC cells, modules and ER + HPC packs by capacity, resistance, current, size and operating temperature.
What You Receive Upon Inquiry:
Model-specific datasheets, an initial comparison matrix, application questions and the recommended next validation step.
Request HPC Model Data
Tell us the required voltage, current pulse, duration, interval, temperature, dimensions and project stage.
Trusted by Global Industry Leaders in Smart Metering & Industrial IoT
ENN
Sanchuan
ENN
Engineered for High-Pulse & Harsh Application Scenarios
Long Sing HPC provides continuous background power and massive pulse discharge for mission-critical industrial devices.
Smart Gas & Water Meters
Automotive Telematics & OBD
NB-IoT / LoRaWAN Trackers
Medical Emergency Devices
Military & Aerospace Systems
Industrial Wireless Sensors
Container Asset Tracking
Smart Agriculture Monitoring
Level 1 Product Architecture
HPC Capacitor Single Cells
Ultra-compact, hermetically sealed hybrid pulse cells designed for direct PCB integration alongside primary lithium batteries.

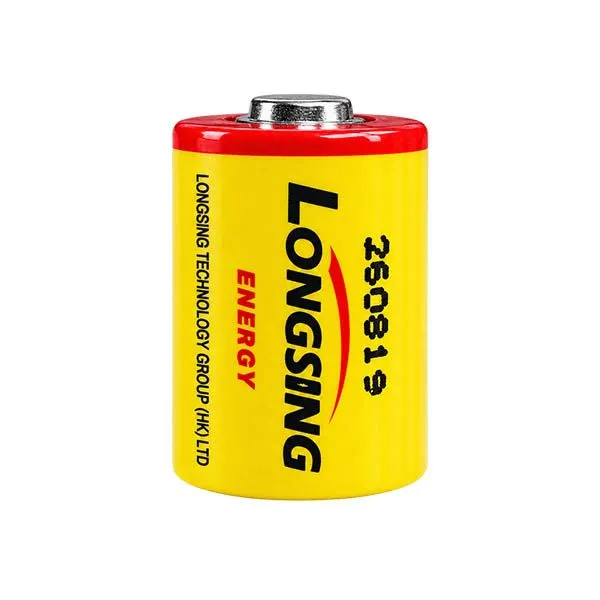

HPC1520 Hybrid Pulse Cell
Designed for high-frequency pulse transmission in compact IoT sensors with strict height constraints(Ø14.5 × 20.0 mm) under 15+ years lifespan.
| Max Charging Voltage | 4.1 V |
|---|---|
| Maximum Capacity | 97 mAh |
| Internal Resistance | ≤160 mΩ |
| Max Continuous Discharge Current | 500 mA |
| Discharge-Off Voltage | 2.5 V |
| Weight | 9.0 g |
| Operating Temperature | −40°C to +85°C |
| Typical Application | Smart Water Meters, Asset Tags, Industrial IoT |

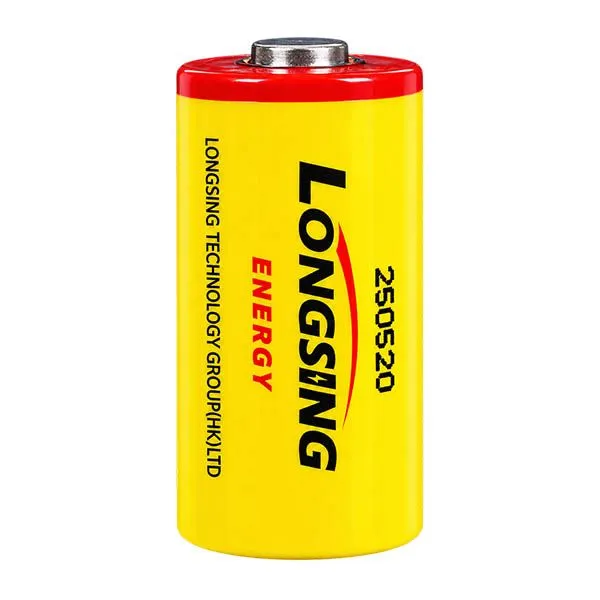

HPC1530 Extended Capacity Cell
The industry workhorse for cellular IoT communication (GSM, LTE-M, NB-IoT) offering superior pulse current reserve(Ø14.6 × 26.8 mm).
| Max Charging Voltage | 4.1 V |
|---|---|
| Maximum Capacity | 180 mAh |
| Internal Resistance | ≤110 mΩ |
| Max Continuous Discharge Current | 800 mA |
| Discharge-Off Voltage | 2.5 V |
| Weight | 10.0 g |
| Operating Temperature | −40°C to +85°C |
| Typical Application | Cellular Gateways IoT, Gas Metering, etc |

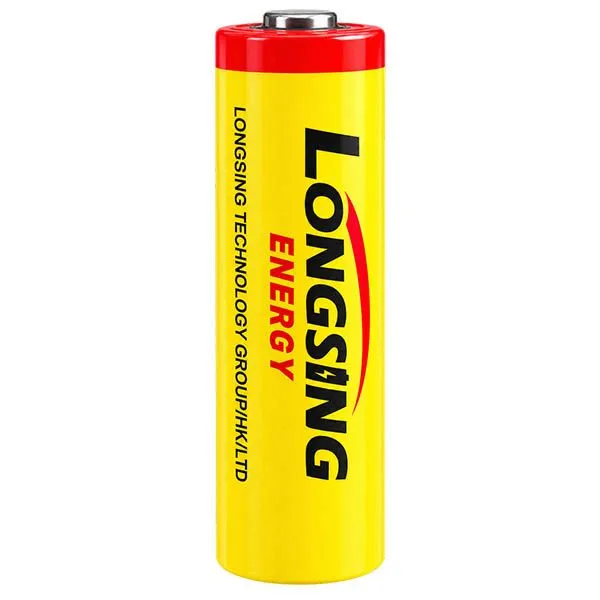

HPC1550 Ultra-Pulse Capacity Cell
Maximum capacitance density in a 15mm diameter envelope(Ø14.6 × 50.5 mm), handling intense 5A burst currents without voltage drop.
| Max Charging Voltage | 4.1 V |
|---|---|
| Maximum Capacity | 450 mAh |
| Internal Resistance | ≤60 mΩ |
| Max Continuous Discharge Current | 5,000 mA |
| Discharge-Off Voltage | 2.5 V |
| Weight | 20.0 g |
| Operating Temperature | −40°C to +85°C |
| Typical Application | Higher-demand pulse applications like Satellite IoT, Military Radios |

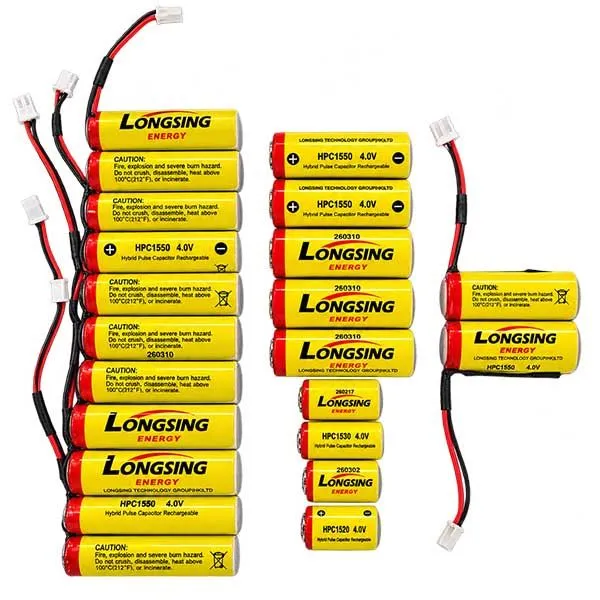

Level 2 Product Architecture
HPC Parallel & Series Modules
Pre-assembled multi-cell modules engineered with integrated balancing circuits for flexible voltage and current scaling.

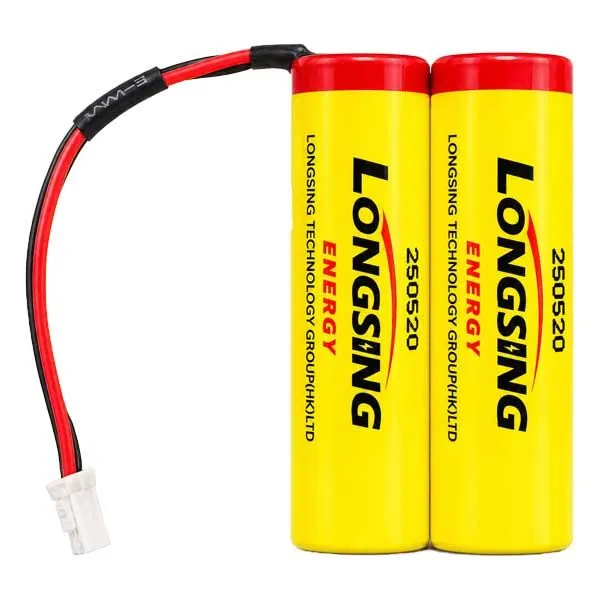

HPC-2P1530 Module
Dual parallel 1530 configuration providing double current burst rate for satellite tracking units.

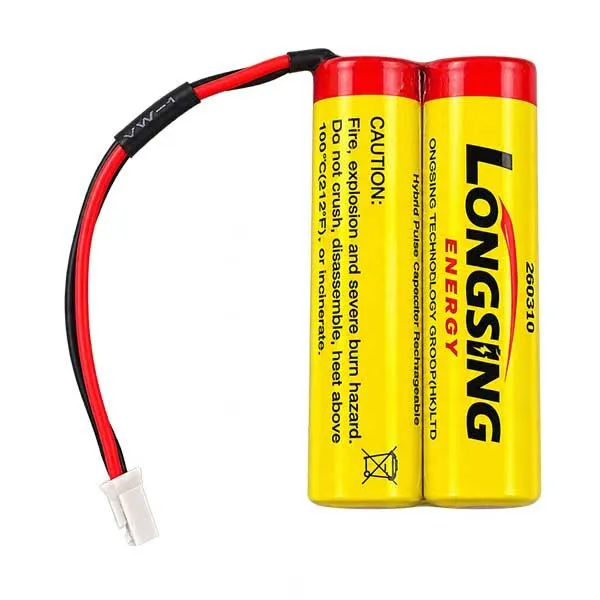

HPC-2S1550 Module
7.2V high-voltage series connected module for heavy industrial valve actuators and pump controllers.

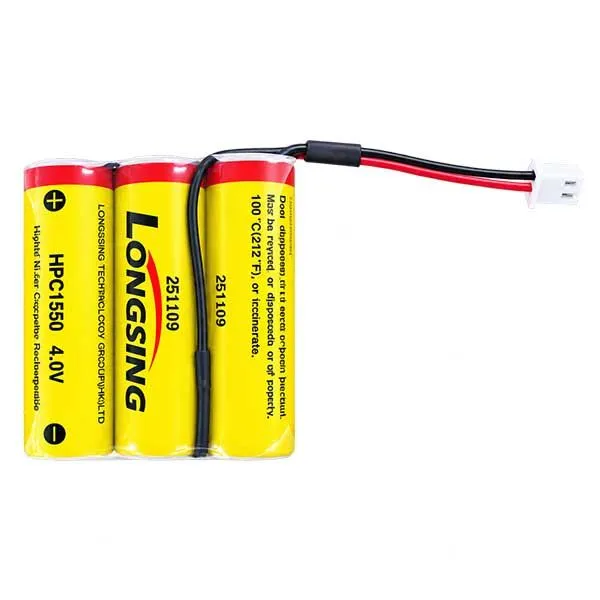

HPC-3P1550 High-Duty
Triple parallel design engineered for extreme 15A pulse discharge requirements in remote radar units.
HPC-M-Custom Module
Custom wire harness, connector, and PCB layout module designed to fit your unique housing.
Level 3 Product Architecture
HPC + ER Battery Hybrid Packs
Integrated primary Lithium Thionyl Chloride (LiSOCl2) battery combined with HPC pulse capacitor in a single shrink-wrapped pack.

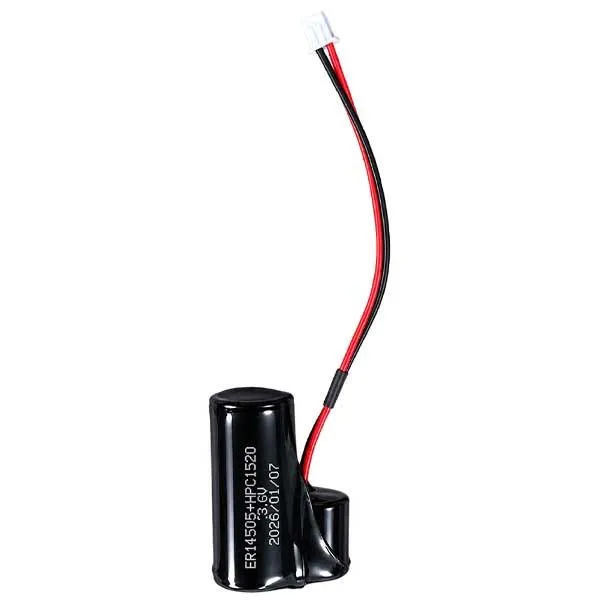

ER14505 + HPC1520 Pack
AA-size LiSOCl2 battery paired with HPC1520 cell. Ideal for standard smart water and gas meters.

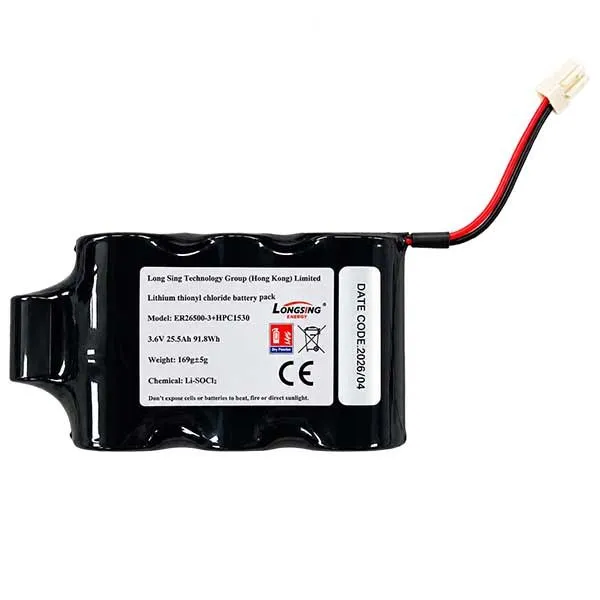

ER26500 + HPC1530 Pack
C-size LiSOCl2 battery combined with HPC1530. Designed for 15+ year maintenance-free IoT telemetry.

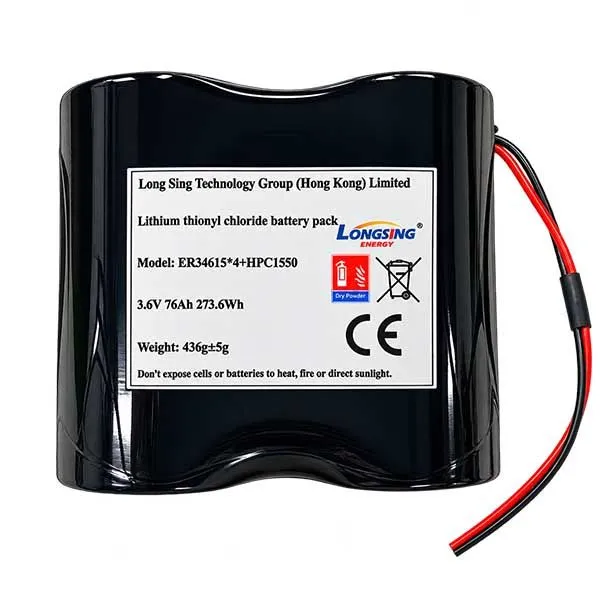

ER34615 + HPC1550 Pack
D-size heavy duty battery coupled with HPC1550 for maximum 19Ah energy and high-power satellite bursts.

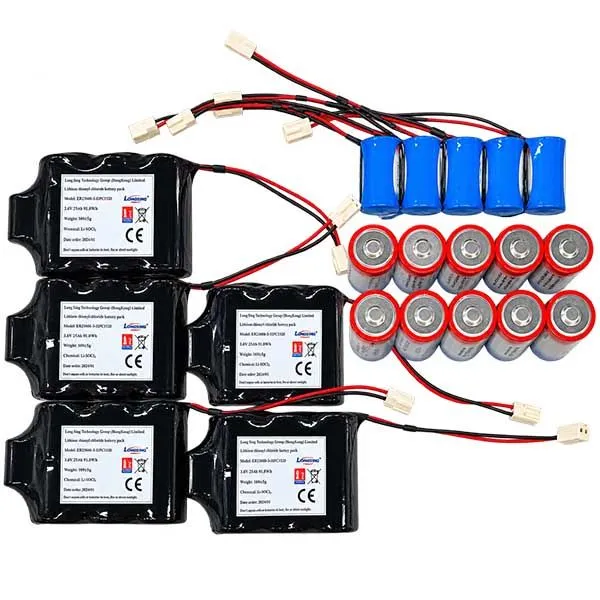

Multi-ER + HPC Custom Pack
Parallel LiSOCl2 cells with HPC pulse buffer for extended 20-year deployment in remote oil & gas pipelines.
Level 4 Product Architecture
HPC Energy Banks
High-capacity energy buffer banks/modules designed for industrial infrastructure, smart grid substations, and solar-assisted IoT terminals.

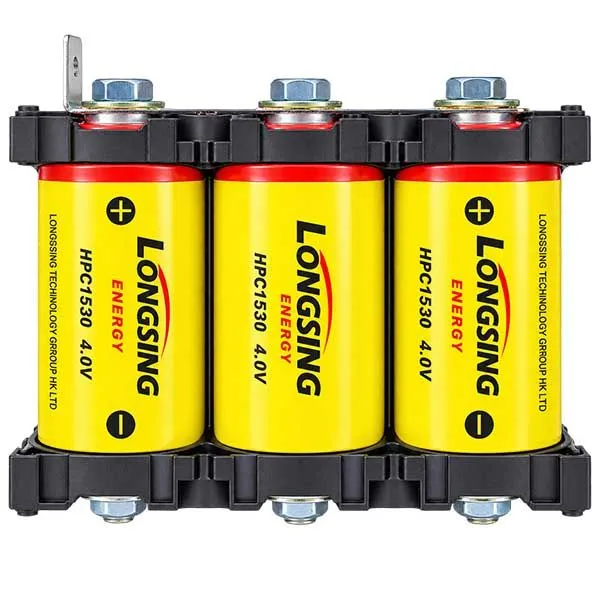

HPC-Bank 12V / 5Ah
Compact 12V pulse energy bank designed for remote RTUs and smart grid fault indicators.

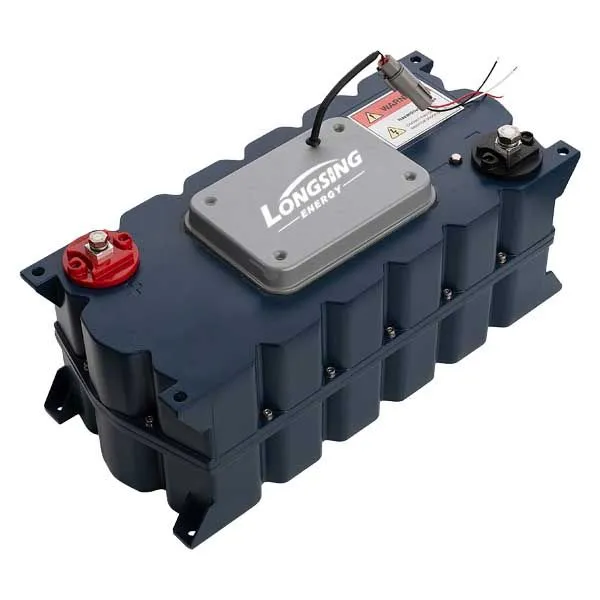

HPC-Bank 24V / 10Ah
Industrial 24V surge-suppression energy bank for automated valve control stations.

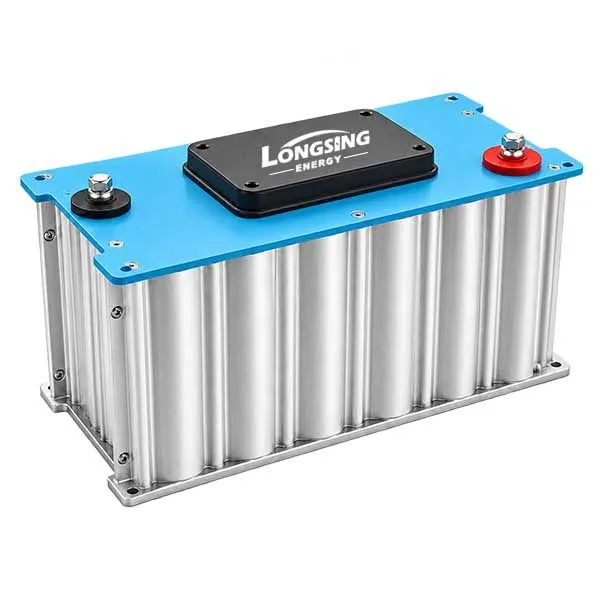

HPC-Bank Solar-Buffer
Hybrid pulse capacitor bank optimized for solar energy harvesting IoT setups with -40°C performance.
HPC-Bank Rack Enclosure
Standard 19-inch rack mountable capacitor bank module for telecommunication base stations.
Level 5 Product Architecture
HPC Power Management Systems
Complete sub-systems with intelligent power management units (PMU), telemetry diagnostic buses, and health status indicators.

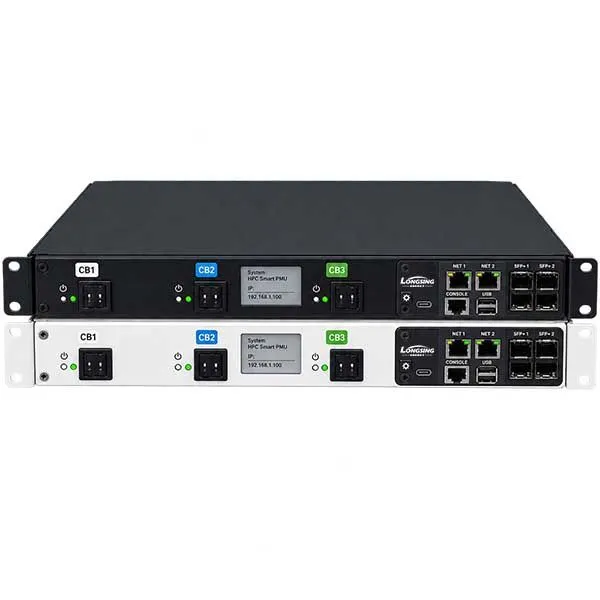

HPC System - Smart PMU
Includes state-of-charge algorithms, overvoltage protection, and direct RS485/Modbus telemetry interface.

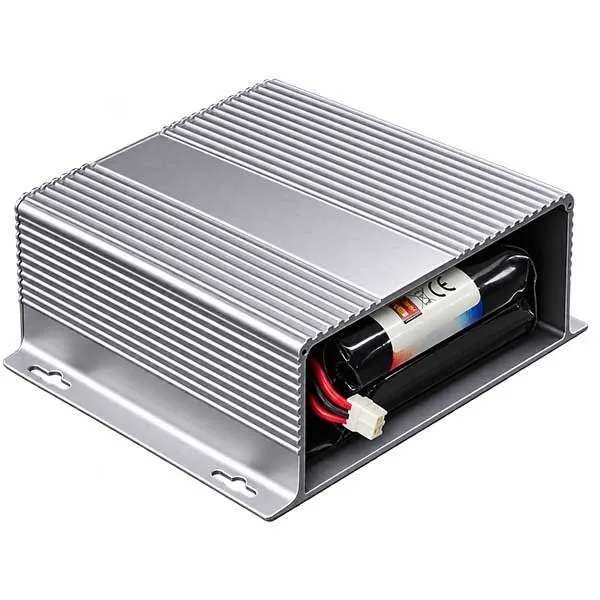

HPC System - Harsh Environment
IP68 waterproof aluminum enclosure designed for subsea monitoring and arctic weather stations.

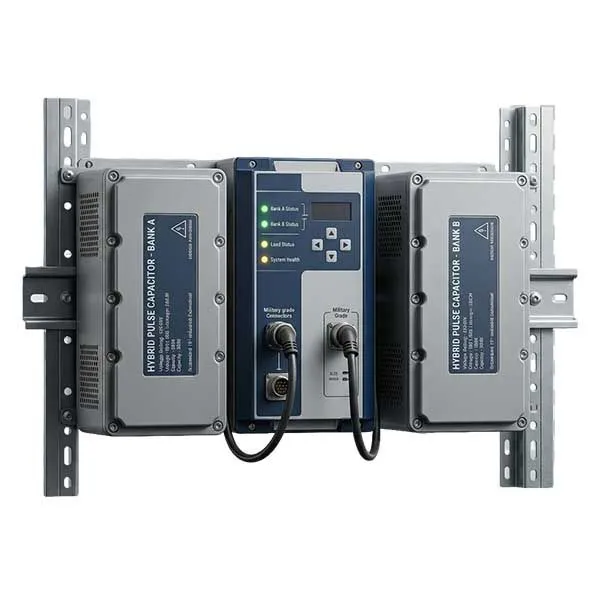

HPC System - Redundant Power
Dual-bank auto-switching redundant system for zero-downtime medical and defense installations.

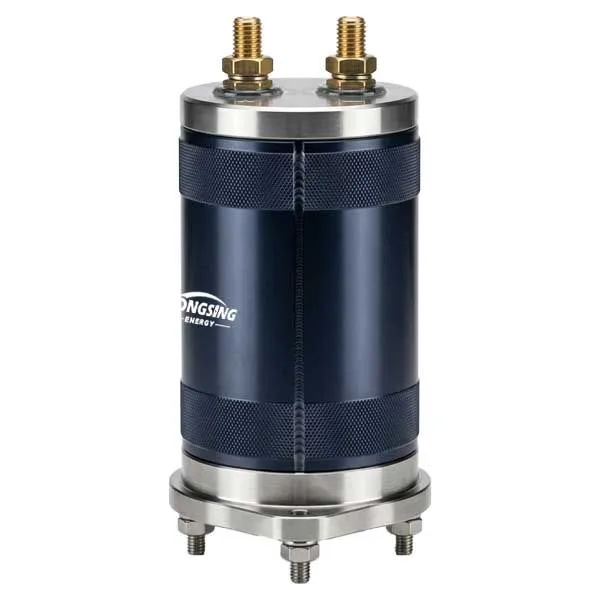

HPC System - High Temperature
Specialized PMU system rated up to +125°C for downhole oil drilling telemetry tools.
Level 6 Product Architecture
Battery Hybrid Systems (BHS)
Flagship integrated energy system combining high-energy primary/rechargeable chemistry with HPC pulse technology and active control modules.

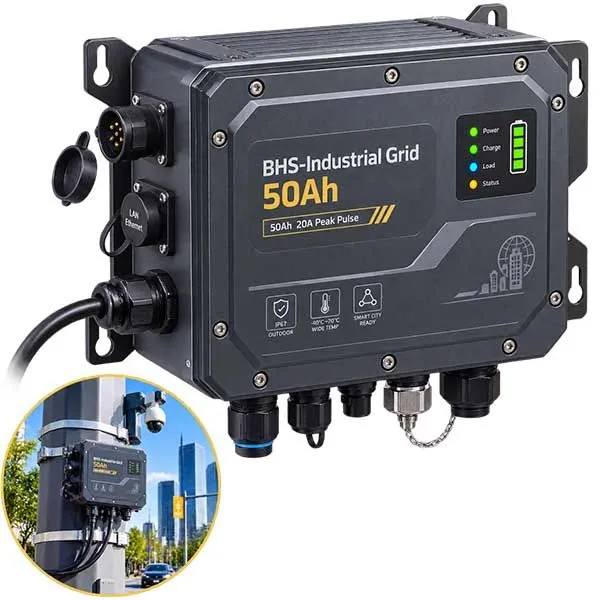

BHS-Industrial Grid 50Ah
50Ah capacity coupled with 20A peak pulse release for smart city outdoor gateway controllers.

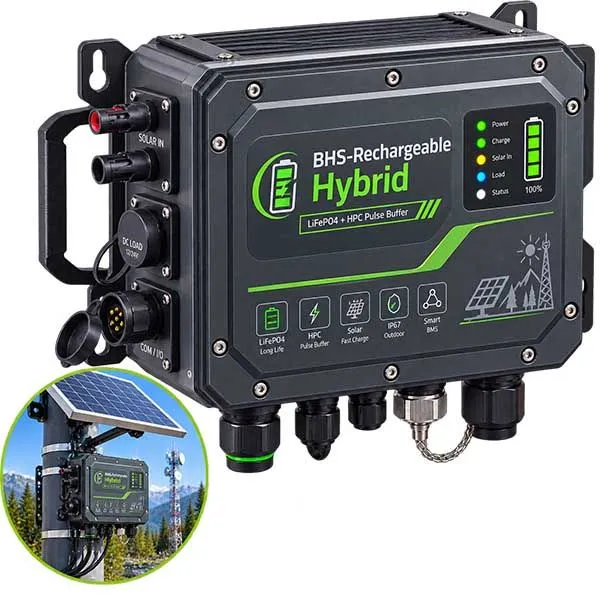

BHS-Rechargeable Hybrid
Combines LiFePO4 energy storage with HPC buffer for fast micro-solar recharge cycles.

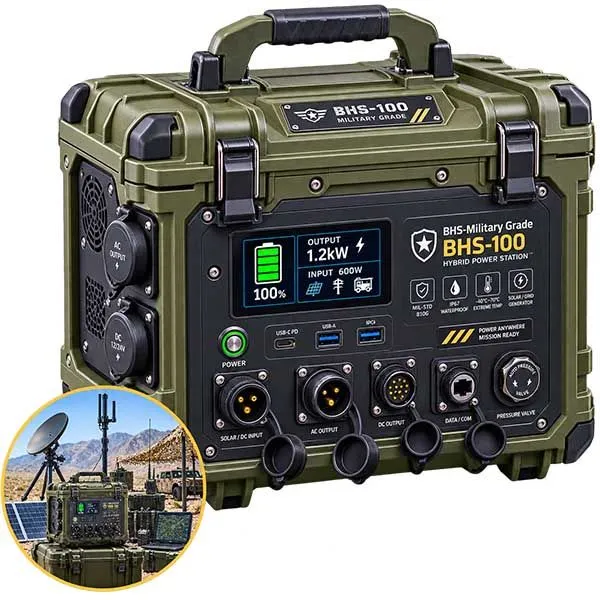

BHS-Military Grade BHS-100
MIL-STD-810G compliant shockproof and waterproof battery hybrid power station.

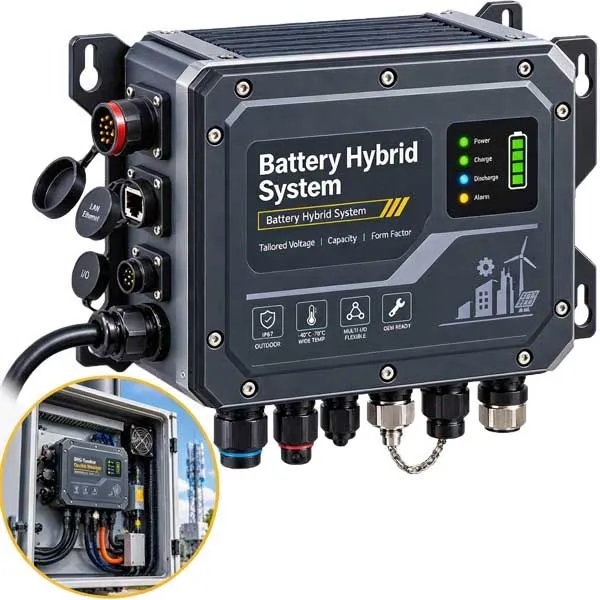

BHS-Turnkey Custom Solution
Fully customized voltage, capacity, and mechanical housing tailored precisely for OEM projects.
HPC vs EDLC, Ultracapacitor and LIC: Compare the Design Fit
EDLC, ultracapacitor and supercapacitor commonly describe electric double-layer devices designed for rapid charge and discharge. A lithium-ion capacitor, or LIC, combines capacitor-type power characteristics with a lithium-intercalation electrode to provide a different balance of voltage, energy and power.

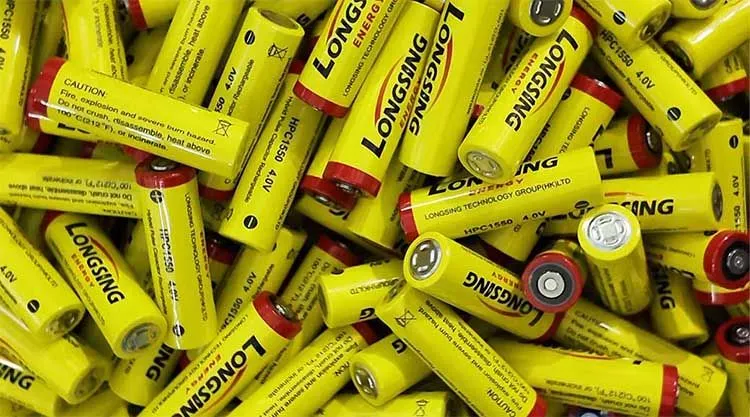

Long Sing Hybrid Pulse Capacitors(HPC) are battery-style rechargeable pulse-support cells intended for applications that remain at low background current for long periods, but periodically require short, demanding current bursts.
Unlike conventional same-end radial capacitors, the Long Sing HPC uses a cylindrical battery-style construction with positive and negative terminals positioned at opposite ends. This form factor supports compact integration alongside primary lithium cells, control electronics and industrial wiring assemblies.

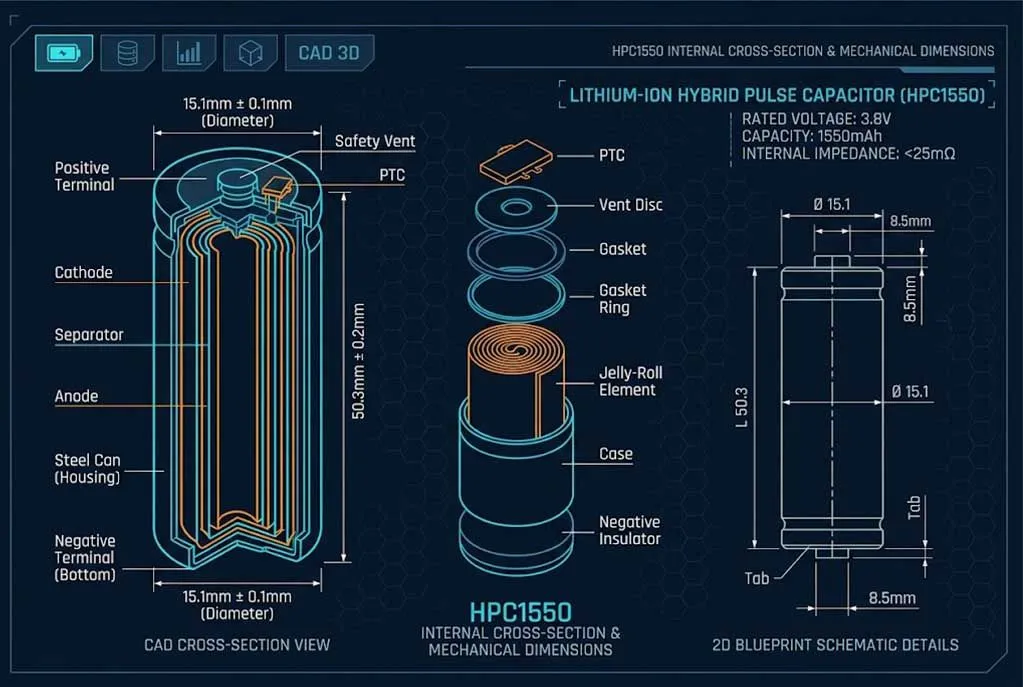

HPC Linear Working Structure & Physical Dimensions
| Parameter / Feature | Long Sing HPC | Standard EDLC / Supercapacitor | Ultracapacitor | Standard Hybrid Capacitor |
|---|---|---|---|---|
| Energy Density | 10–20 Wh/kg | 3–6 Wh/kg | 4–8 Wh/kg | 8–15 Wh/kg |
| Operating Voltage (Cell) | 3.6V – 3.9V | 2.7V – 3.0V | 2.8V – 3.0V | 3.0V – 3.2V |
| Annual Self-Discharge Rate | < 1% @ 25°C | 15% – 30% / month | 10% – 20% / month | 5% – 10% / year |
| Operating Temp Range | -40°C to +85°C | -20°C to +65°C | -40°C to +65°C | -20°C to +70°C |
| Voltage Lag / Passivation Response | Zero Voltage Delay | High ESR at low temp | Moderate ESR rise | Slight delay under pulse |
| Operational Lifespan | 20 Years Maintenance-Free | 3 – 5 Years | 5 – 8 Years | 7 – 10 Years |
| Primary Application Suitability | Long-Life IoT & Smart Meters | Short-term memory backup | Regenerative braking | Consumer electronics |
Where HPC fits better than alternatives
vs Lithium-ion battery
10× the cycle life at full DoD, safe at −40 °C, 1 s charge accept for regen energy.
vs LIC (lithium-ion capacitor)
Our HPC uses a pre-lithiated hard-carbon anode, not graphite — lower IR and better rate.
Wind turbine pitch
10-year service interval, IP54 outdoor cabinet, cold-start at −40 °C.
Smart meters
Drop-in upgrade from 2.7 V EDLC: same form factor, 30 % more energy, 1.5 V higher voltage.
Industrial IoT sensors
Years of standby plus short high-current radio or actuator pulses at −40 °C.
Real Test Data: Measured curves from our 3.8 V / 800 F cell
Click Thumbnails to View High-Res Pulse Curves

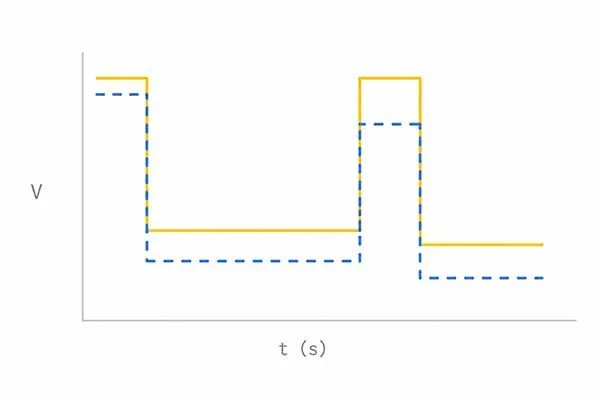

Pulse Discharge Curve

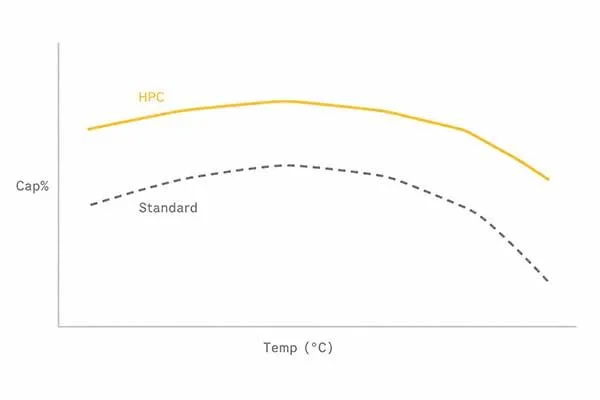

Temperature Stability

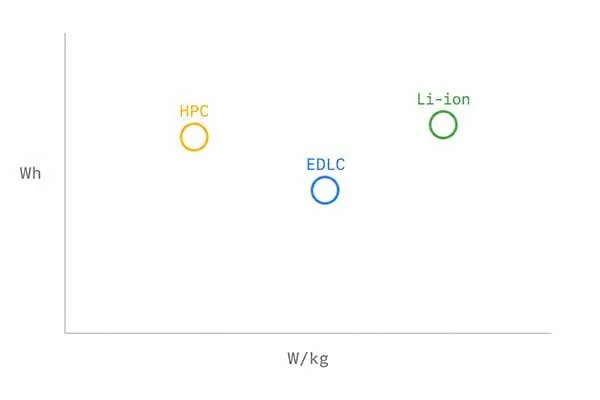

Energy vs Power

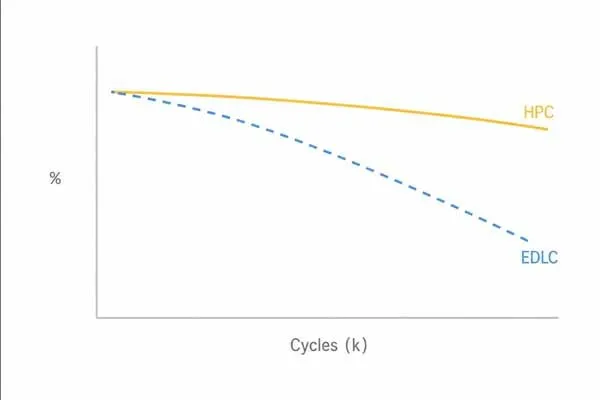

Cycle Life Retention

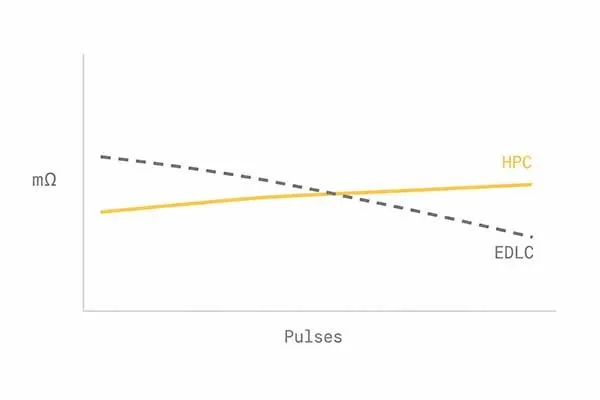

ESR Stability
Long Sing Commitment
Our 100% Quality & Longevity Guarantee
Every single HPC unit manufactured in our ISO9001 certified facility undergoes 100% automated internal resistance testing, leak detection, and high-temperature burn-in before dispatch.
- 100 % pulse-tested before shipment
- Zero Passivation Guarantee
- 10-Year Factory Warranty
- Full Traceability
- 24-hour engineering response
- 15-day custom sample turnaround
Automated Production & Testing Facility

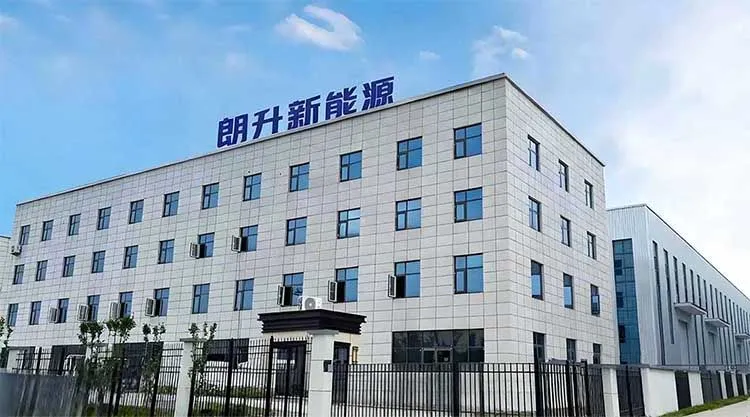

Long Sing Company
Hybrid Pulse Capacitor

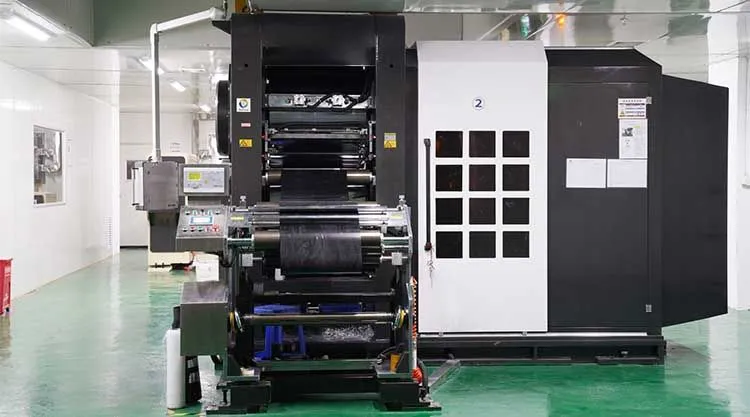

Roll Pressing Machine

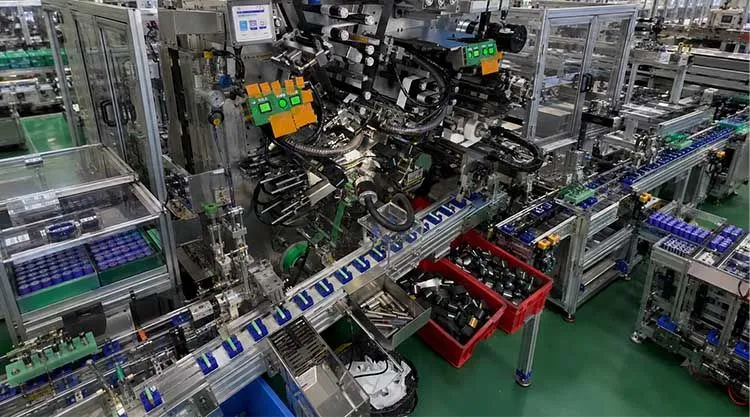

Winding Machine

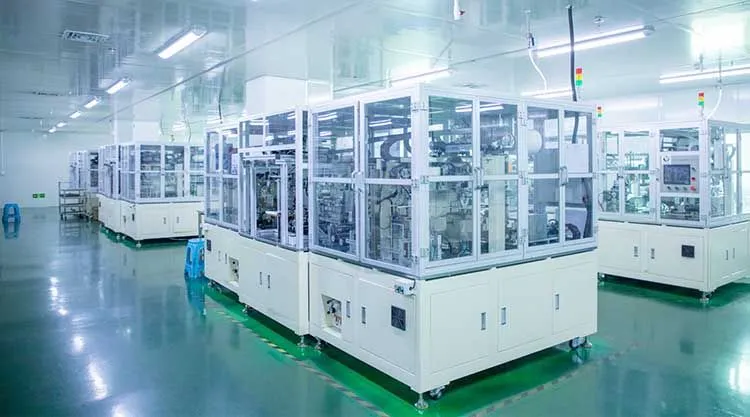

Automatic Stacking Machine

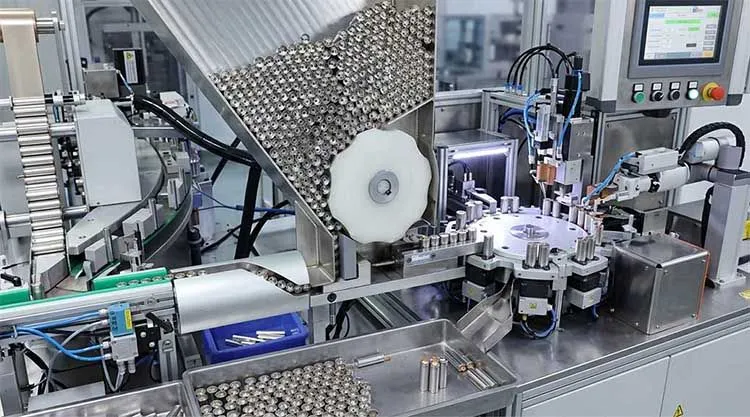

Automatic Loading Machine

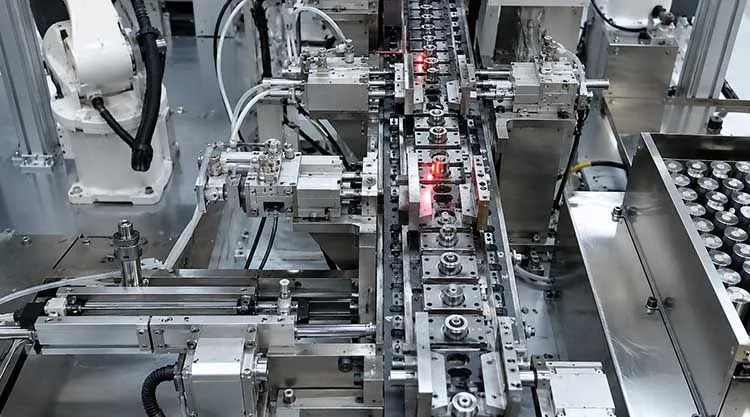

Laser Welding

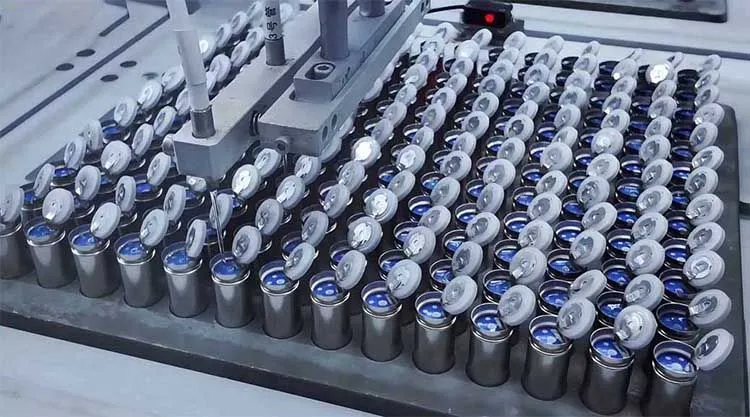

Electrolyte Injection Machine

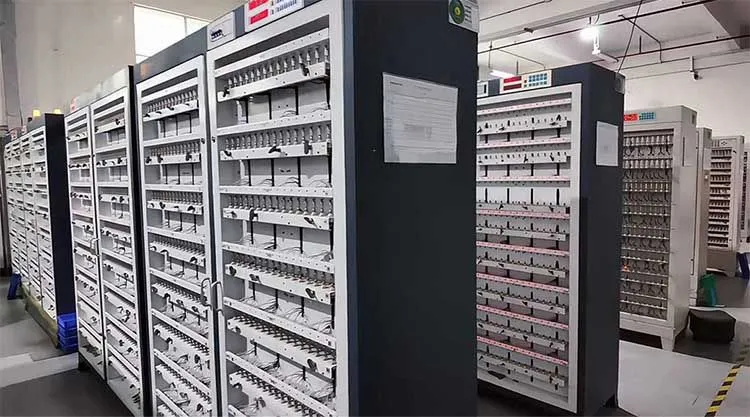

Aging Testing Machine
Verified Feedback from Global Engineers
See how Long Sing Hybrid Pulse Capacitors solved critical field power issues for smart metering and telemetry OEMs worldwide.
We experienced severe voltage delay issues with traditional supercapacitors in our smart gas meters operating in cold Canadian winters (-30°C). Long Sing HPC1530 eliminated passivation completely. We have deployed over 450,000 units with zero field failures.
MK
Markus K.
Senior Hardware Engineer, Canada
We benchmarked HPC cells from five global suppliers. Long Sing showed 12% better pulse performance, lower ESR, and superior thermal stability. They are now our sole HPC partner.
HW
Hans W.
Engineering Director, Germany
The energy density of (Long Sing's) HPC1550 allowed us to shrink our LTE-M asset tracker enclosure by 35%. Their technical team assisted us with power budget simulations and delivered customized samples in under 5 days.
DR
David R.
VP of IoT Engineering, United States
We replaced a 2.7 V EDLC with the HPC1550 on the same PCB. One cell instead of two, 30 % more backup time, and the lot-to-lot ESR spread was the tightest we have measured.
MC
Matthew R. C.
VP Engineering, United States
Long Sing is our long-term strategic supplier for smart water metering projects in Europe. Their ER26500+HPC1530 packs easily meet our 15-year warranty requirement with exceptional self-discharge performance.
JH
Jens H.
Procurement Director, Netherlands
The pulse test report they sent with every lot was more detailed than the ones we produce internally. We skipped six months of incoming inspection for a critical launch.
AT
Aiko T.
Senior Quality Engineer, Japan
Information Required for Engineering Evaluation
To recommend the exact HPC cell or battery pack configuration for your design, please provide:
- Target Pulse Current (A) & Pulse Duration (ms/s)
- Cut-off Voltage & Continuous Background Current (µA)
- Operating Temperature Range (°C) & Design Lifetime (Years)
- Mechanical Dimensions / Space Restrictions
Turnkey OEM / ODM Collaboration Process
1. Requirements & Simulation
24 Hours
Evaluation of your load profile and mathematical simulation of battery/HPC life cycle.
2. Free Sample Prototyping
3-5 Days
Custom cell selection, harness assembly, and express delivery of prototyping samples.
3. Testing & Verification
Client Approval
Field pulse testing in your device with our dedicatedFAE engineering support.
4. Mass Production & QC
2-3 Weeks
Automated manufacturing with 100% automated quality screening and batch trace logs.
Start Your Custom HPC Project
Boost your IoT battery lifespan up to 3x with zero voltage delay.
📞 Direct Sales Line: +852 9791 8196
✉️ Technical Support: luke.liu@longsingtechnology.com
📍 Factory: Rm 809, 8/F, Data Tech Hub, 5 Chun Cheong St, TKO INNOPARK
Frequently Asked Questions
Everything you need to know about custom HPC development, production lead times, and quality assurance.
How does HPC prevent passivation in LiSOCl2 batteries?
The HPC operates in parallel with the ER battery. It supplies instantaneous high pulse currents while keeping the ER battery discharge current below its passivation threshold, thereby preventing voltage drops.
What is the minimum order quantity (MOQ)?
For standard single cells (HPC1520, 1530, 1550), MOQ starts at 100 units. For custom hybrid packs or wire harnesses, standard MOQ is 500 units. Free engineering sample packs are available for qualified OEM projects.
What is your standard production lead time?
Prototypes and engineering samples are shipped within 3–5 working days. Mass production orders are fulfilled within 2–3 weeks depending on volume and testing requirements.
Are Long Sing HPC products UN38.3 & UL certified?
Yes. All HPC models and composite battery packs pass UN38.3, UL1642, CE, and RoHS certifications for worldwide air and sea freight transportation.
Can you customize dimensions and connector types?
Yes. We offer turnkey mechanical customization including JST, Molex, Hirose connectors, specialized shrink tubing, and custom PCB pin soldering.
What warranty and after-sales support do you provide?
All industrial HPC cells come with a standard 10-year factory warranty and direct 24/7 Field Application Engineer (FAE) technical support for power management debugging.
