Hybrid Supercapacitors (HPC): The Ultimate Guide to Lithium-Ion Pulse Power Solutions

Hybrid supercapacitor technology bridges the gap between traditional supercapacitors and lithium-ion batteries, delivering battery-like energy density with ultra-fast charge capability and exceptional cycle life.

Hybrid supercapacitors are advanced energy storage devices that merge lithium-ion battery technology with electric double-layer capacitor structures. They deliver high power output (up to 10,000 W/kg), extended cycle life (over 1 million cycles), and wide temperature performance (-40°C to +85°C).

These devices excel in pulse power applications where rapid energy discharge and recharge are critical for system reliability.

High-power devices need fast energy bursts. Traditional batteries can’t keep up. Your equipment fails when it needs power most.

Hybrid supercapacitors solve this problem by combining battery energy density with capacitor power delivery, giving you reliable pulse power for industrial applications.

Modern industrial systems demand power solutions that traditional components cannot provide alone. This guide will help you understand how these devices work and why they matter for your applications.

Table of Contents

• What Are Hybrid Supercapacitors and How Do They Work?
• Why Choose Hybrid Pulse Capacitors Over Traditional Solutions?
• What Applications Benefit Most from Lithium Ion Capacitor Technology?
• How Do You Select the Right Hybrid Supercapacitor for Your System?

What Are Hybrid Supercapacitors and How Do They Work?

Hybrid supercapacitors combine a lithium-ion battery-type anode with an activated carbon cathode. The anode stores energy through intercalation (like batteries), while the cathode uses electrostatic charge storage (like capacitors).

This dual mechanism provides both high power density (5,000-10,000 W/kg) and reasonable energy density (10-20 Wh/kg), bridging the gap between conventional batteries and EDLCs.

Understanding the internal structure helps you see why these devices perform differently than other energy storage options. The technology builds on decades of research in both battery chemistry and capacitor physics.

The Electrochemical Architecture of Hybrid Energy Storage Systems

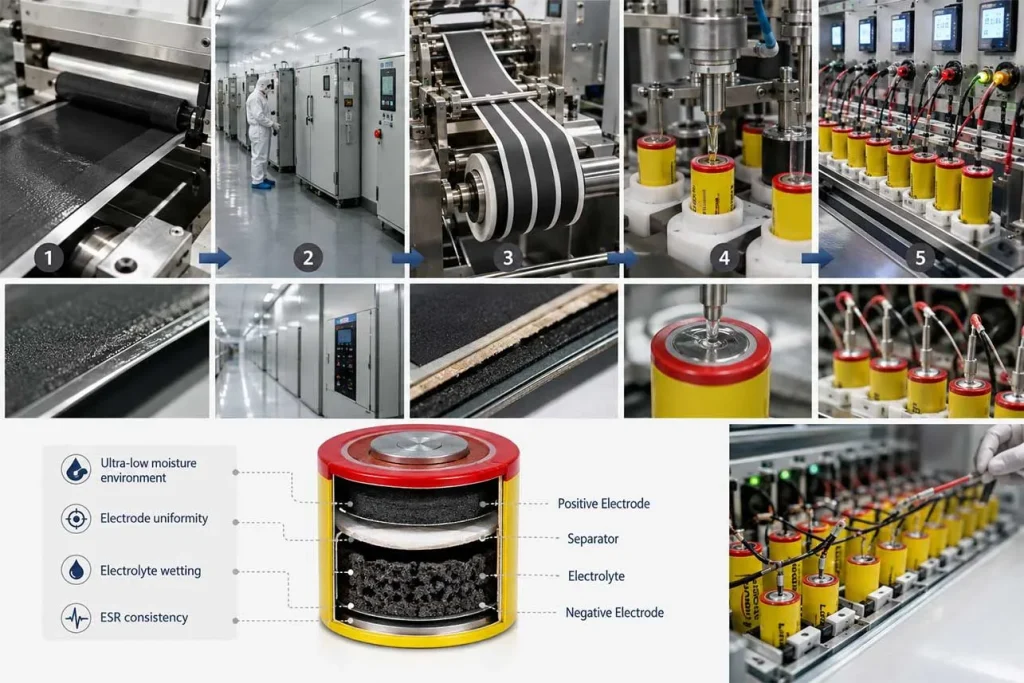

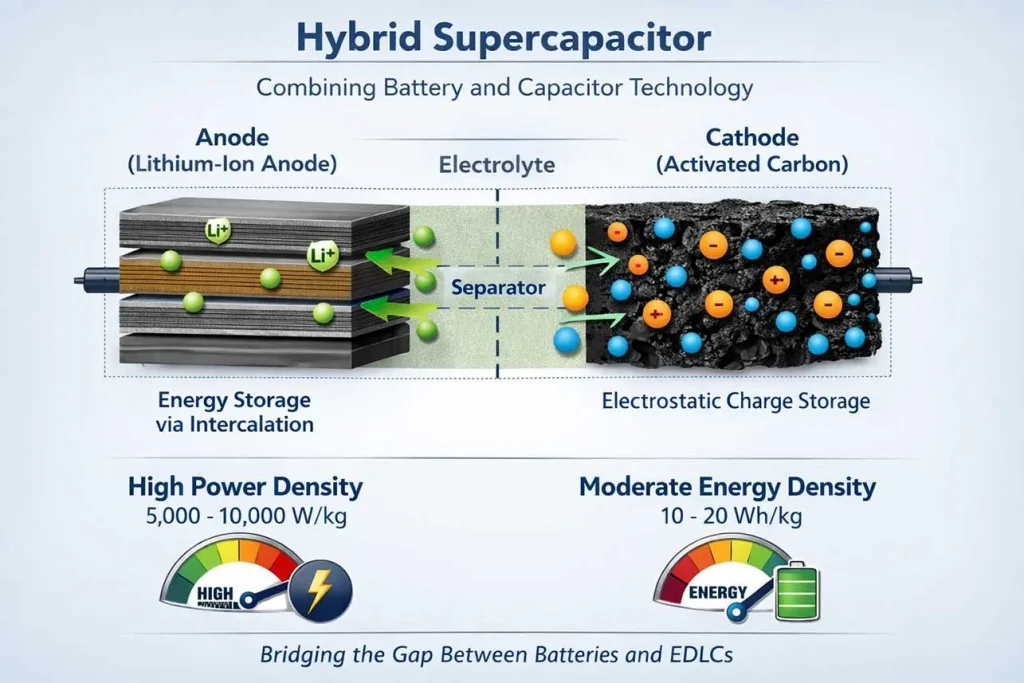

The internal structure determines performance characteristics. A lithium ion capacitor uses pre-doped graphite or hard carbon as the negative electrode. This material accepts lithium ions during charging. The positive electrode consists of activated carbon with extremely high surface area (1,500-3,000 m²/g). An organic electrolyte allows ion movement between electrodes.

During discharge, lithium ions leave the anode and migrate through the electrolyte while electrons flow through the external circuit. The cathode simultaneously releases stored charge from its electric double layer. This synchronized dual process delivers the high power output these devices are known for.

The asymmetric design allows operation at higher voltages (3.8-4.0V per cell) compared to symmetric EDLCs (2.7V per cell).

The charging process reverses this flow. Lithium ions return to the anode structure while the cathode rebuilds its charge layer. This happens much faster than in conventional batteries because the activated carbon cathode doesn’t require slow solid-state diffusion. A full charge cycle can complete in seconds rather than hours.

Temperature affects performance but not as severely as in standard batteries. The electrostatic storage mechanism at the cathode remains functional even at extreme temperatures.

The lithium intercalation at the anode slows in cold conditions but doesn’t stop completely. This gives hybrid capacitors a usable range from -40°C to +85°C.

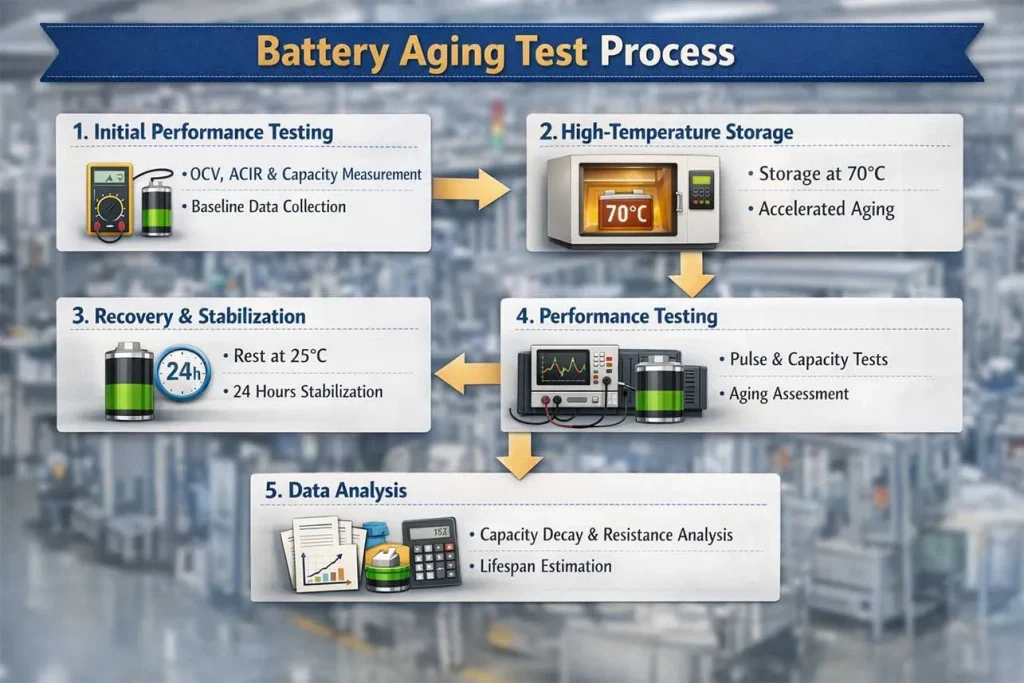

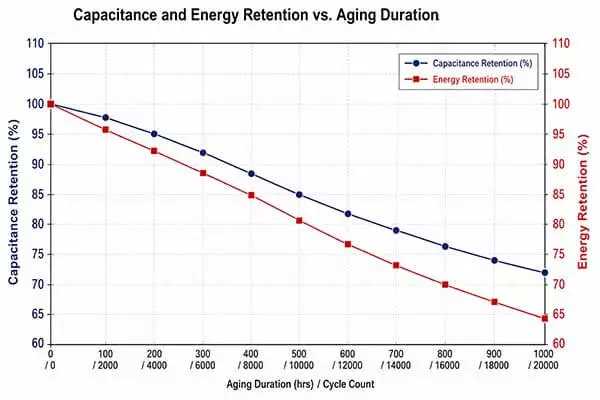

The manufacturing process affects final quality. We at Long Sing Technology run every hybrid pulse capacitor through 100% high-temperature charged aging tests before shipment. This screens for early failures and ensures long-term stability.

Each unit faces elevated temperature stress while fully charged. Weak cells fail during this test rather than in your field application. This quality control step adds cost but dramatically improves reliability.

Why Choose Hybrid Pulse Capacitors Over Traditional Solutions?

Hybrid pulse capacitors (HPC) outperform traditional batteries in power density, cycle life, and charge speed.

They deliver 10-100 times more power than lithium-ion batteries, last for over 1 million charge cycles versus 500-2,000 for batteries, and recharge in seconds instead of hours. For applications requiring frequent high-current pulses, HPCs reduce maintenance costs and improve system uptime compared to battery-only solutions.

The performance advantages translate directly to operational benefits. You need fewer replacements over equipment lifetime. Your systems experience less downtime. Peak power availability improves.

Comparative Performance Metrics Across Energy Storage Technologies

Power density defines how quickly energy flows from storage. An ultra supercapacitor can discharge at rates exceeding 10,000 W/kg for short bursts. A standard lithium-ion battery manages 100-300 W/kg at best. This 30-100x difference matters when you need instant power for AMR startup, GSM transmission bursts, or valve actuation.

Cycle life determines replacement frequency. Traditional batteries fade after 500-2,000 deep discharge cycles. Chemical changes degrade the electrodes permanently. An LIC handles over 1 million cycles because the storage mechanisms cause minimal structural damage.

The activated carbon cathode doesn’t degrade from charge-discharge cycling. The lithium-doped anode experiences minimal expansion-contraction stress.

Energy density shows storage capacity per unit weight. Batteries still win this category with 150-250 Wh/kg versus 10-20 Wh/kg for hybrid devices. However, this gap narrows when you account for pulse requirements.

If your battery must stay above 50% state of charge to deliver required pulse current, your effective energy density drops by half. The hybrid device can discharge to near zero and still deliver full power.

Temperature performance affects outdoor and industrial installations. Standard lithium-ion batteries lose 60-80% capacity at -40°C. An EDLC maintains 70-80% performance at the same temperature.

The electrostatic storage mechanism doesn’t slow down as much as chemical reactions. This makes these devices suitable for utility meters in harsh climates.

Cost considerations extend beyond purchase price. The initial cost per watt-hour for a hybrid supercapacitor battery exceeds that of batteries.

However, lifetime cost calculations change the picture. Divide total cost by cycle life and the hybrid solution often wins. A $50 hybrid device lasting 1 million cycles costs $0.00005 per cycle. A $20 battery lasting 1,000 cycles costs $0.02 per cycle. For high-cycle applications, the economics clearly favor hybrid technology.

Real-world validation matters more than datasheets. We recently worked with a Japanese customer installing sensors for remote mountain monitoring. The application demanded 15-year maintenance-free operation in temperature extremes from -40°C to +70°C.

They initially considered standard lithium primary batteries alone. After reviewing their pulse requirements for data transmission, we proposed a hybrid solution combining a LiSOCl₂ primary cell for base load with an HPC hybrid supercapacitor for communication pulses. The primary cell provides long-term capacity while the capacitor handles high-current bursts.

The customer was skeptical about combining two technologies. We sent initial samples for testing. Their first feedback highlighted voltage matching issues between the primary cell and capacitor during pulse events. We reworked the samples with improved voltage balancing circuitry and better thermal management.

The second iteration performed well in their lab tests. We then shipped pre-production units that underwent field trials in actual mountain installations for six months. After confirming stable performance through summer heat and winter cold, they placed their first production order.

This iterative process from sampling to rework to field validation ensures solutions actually work in harsh real-world conditions.

What Applications Benefit Most from Lithium Ion Capacitor Technology?

Lithium ion capacitor technology excels in applications requiring high pulse power, long life, and wide temperature operation. Key markets include utility metering (AMR/AMI systems), industrial IoT sensors, wireless communication devices, backup power systems, and renewable energy storage.

Any application with intermittent high-power demands combined with long deployment periods benefits from this technology’s unique characteristics.

The application space continues expanding as more designers discover the performance envelope. What seemed impossible with batteries becomes practical with hybrid solutions.

Industrial and Utility Sector Implementation Scenarios

Smart meters represent a major application area. These devices sit idle for hours between reading cycles. When they wake to transmit data, current demand spikes from microamperes to several amperes. A supercapacitor battery hybrid handles these pulses efficiently.

The primary cell or harvested energy slowly charges the capacitor. The capacitor delivers the transmission burst. This division of labor extends overall system life to 15-20 years without battery replacement.

Gas and water meters face similar challenges. Motorized valve control requires brief high-current pulses to actuate flow control mechanisms. Temperature extremes in outdoor installations stress conventional batteries.

A li ion supercapacitor maintains performance across the full environmental range these meters experience. Installation costs decrease when you eliminate mid-life battery replacement visits.

Industrial sensors in remote locations need reliable backup power. Solar panels or vibration harvesters provide primary energy but can’t deliver sudden peak loads. A lithium ion supercapacitor buffers this energy and supplies pulses on demand.

The rapid charge acceptance allows these devices to capture brief energy availability windows. When sun hits a panel or a machine vibrates, the capacitor quickly stores that energy before conditions change.

Emergency lighting and exit signs require instant full power when AC mains fail. Traditional battery-based systems degrade over time and may fail during actual emergencies.

A hybrid pulse supercapacitor maintains readiness for decades. The near-infinite cycle life means the device can charge and discharge daily during testing without degradation. When emergency power is needed, full brightness appears immediately.

Medical backup power systems can’t accept failure. Patient monitoring equipment, ventilators, and medication pumps require uninterrupted operation during power transitions.

The instant response of hybrid capacitors eliminates the brief dropout that occurs when batteries take over from mains power. The high pulse capability ensures motors and compressors start reliably even under heavy load.

Transportation applications benefit from regenerative braking capture. Electric vehicles and trains convert kinetic energy back to electricity during braking. This energy arrives in high-power bursts that batteries can’t accept efficiently.

An ultra-supercapacitor absorbs this energy at high rates and then transfers it to batteries for longer-term storage. This two-stage approach improves overall system efficiency by 15-25%.

We also see growing use in grid stabilization systems. Renewable energy sources create voltage and frequency fluctuations as cloud cover or wind speed changes. A high pulse discharge capacitor can inject or absorb megawatts of power in milliseconds to smooth these transitions.

The long cycle life makes economic sense for systems that may cycle thousands of times per day responding to grid conditions.

How Do You Select the Right Hybrid Supercapacitor for Your System?

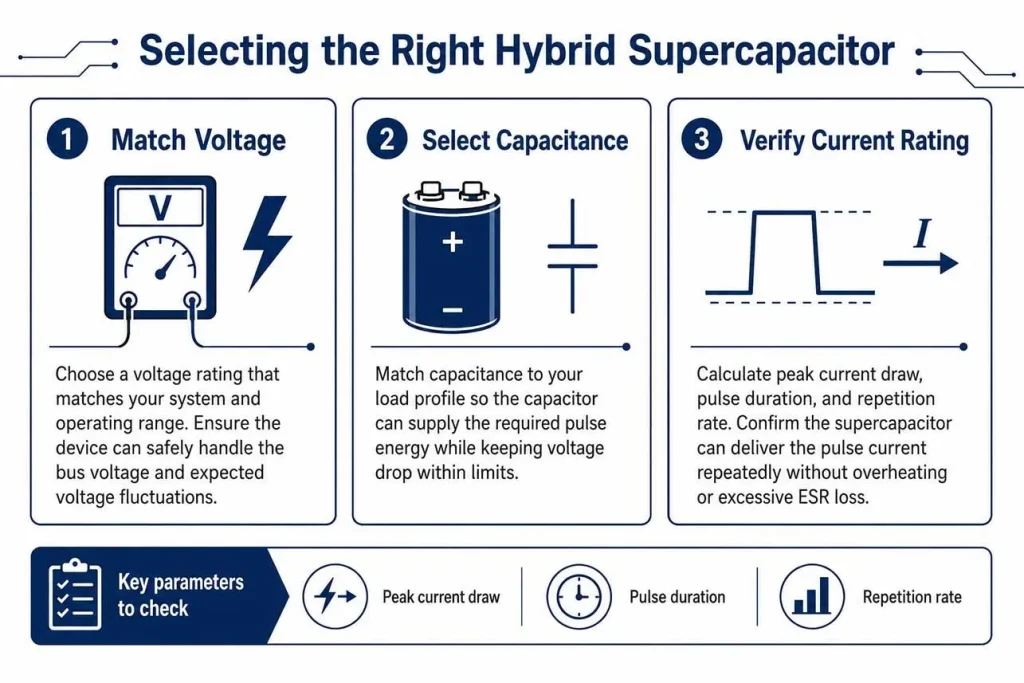

Selecting the right hybrid supercapacitor requires matching voltage, capacitance, and current ratings to your load profile. Calculate peak current draw, pulse duration, and repetition rate.

Choose a device voltage rating 20% higher than system voltage for safety margin. Size capacitance to maintain acceptable voltage droop during discharge pulses. Verify temperature ratings exceed your environmental extremes. Consider package size, terminal configuration, and mounting options for mechanical integration.

The selection process combines electrical analysis with practical engineering constraints. Paper calculations get you close but real testing validates the choice.

Engineering Methodology for Component Specification and System Integration

Start with load characterization. Measure or calculate actual current versus time during your peak demand event. Many designers guess at these values and under-spec their solutions. Use an oscilloscope or current probe to capture real data from a prototype or similar device.

You might discover your 2A “pulse” actually peaks at 3.5A for 200 milliseconds. This detail matters when sizing components.

Calculate energy requirements using the formula

E = ½CV²

If your load needs 5 joules at 3.6V, you need

C = 2E/V² = 10J/12.96V² = 0.77F minimum

Round up to the next standard value with margin. Select a 1.0-1.5F device to account for voltage droop during discharge and component tolerance. Remember that capacitance decreases slightly with age, so include 10-20% overhead.

Voltage selection involves system compatibility and safety. A single hybrid capacitor cell operates at 3.8-4.0V nominal. If your system runs at 3.6V, this works directly.

For other voltages, you need series or parallel combinations. Series connection increases voltage but decreases capacitance and requires careful balancing. Parallel connection increases capacitance and current capability while maintaining voltage.

Internal resistance affects pulse performance. This parameter appears as ESR (equivalent series resistance) on datasheets, typically 10-50 milliohms for hybrid supercapacitors. Higher ESR causes larger voltage droop and power loss during discharge.
While ESR defines pulse delivery, leakage current determines how much stored energy remains available after hours or days of idle time—making hybrid supercapacitor leakage current a critical metric for low-duty IoT systems.

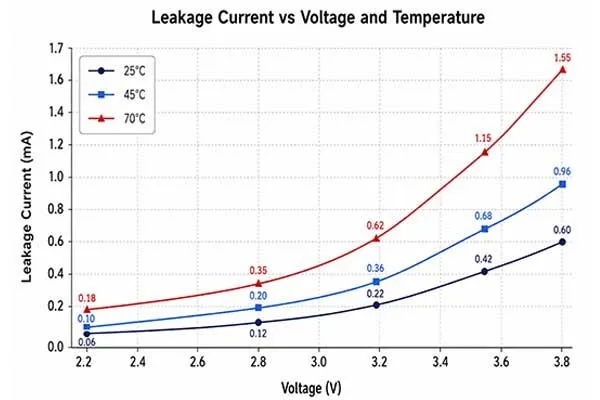

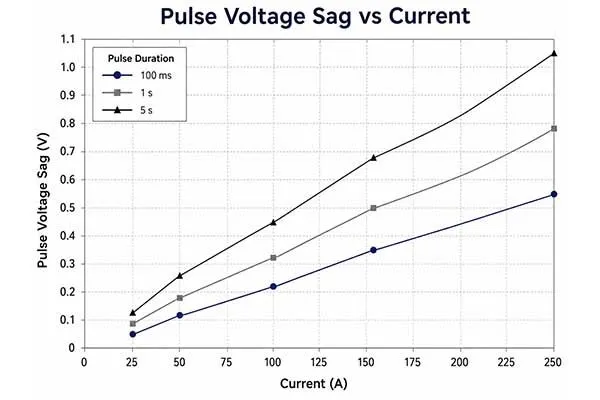

If you need 5A from a 3.8V capacitor with 30mΩ ESR, you lose 150mV (5A × 0.03Ω) immediately to resistive drop. Factor this into your voltage budget.

Temperature derating curves show performance changes across operating range. A device rated for 1.0F at 25°C might provide only 0.8F at -40°C. Peak current capability also decreases at temperature extremes.

Review manufacturer data carefully and design for worst-case conditions. If your meter operates at -40°C, validate performance at that temperature, not room temperature.

The question of hybrid supercapacitor vs battery often comes up during selection. The answer depends on your duty cycle.

If you need continuous moderate current for hours, batteries win. If you need brief high-current pulses with long idle periods between them, hybrid supercapacitors win.

Many optimal designs use both in a hybrid energy storage system where batteries provide base load and capacitors handle peaks.

Physical packaging affects integration. Cylindrical cells work well for compact designs but need secure mounting to prevent vibration damage. Prismatic or pouch formats offer better space efficiency for some layouts. Terminal types include screw terminals, solder tabs, and wire leads.

Choose based on your assembly process and vibration environment. Applications in vehicles or industrial machinery need robust mechanical connections that won’t loosen over time.

Protection circuitry prevents damage and ensures safety. You need over-voltage protection because exceeding rated voltage dramatically shortens life. Under-voltage protection prevents reverse polarity damage if the capacitor fully discharges.

Over-current protection guards against short circuits. Temperature monitoring catches thermal runaway conditions before they become dangerous. We at Long Sing Technology can provide integrated protection modules designed specifically for ultrasupercapacitor applications.

Testing and validation should occur early in development. Don’t wait until you have 10,000 units in the field to discover your peak current exceeds component ratings.

Build prototypes with instrumentation to monitor voltage, current, and temperature during actual operation. Accelerated life testing at elevated temperature predicts long-term reliability. We recommend at least 1,000 hours at maximum rated temperature with periodic pulse cycling to verify performance stability.

Our approach as a lithium primary battery manufacturer focuses on complete system solutions rather than individual components. When customers approach us with application requirements, we analyze the entire power architecture.

Sometimes a LiMnO₂ cell alone suffices. Other times we recommend combining our primary cells with hybrid supercapacitors for optimal performance. This honest assessment builds trust and leads to better outcomes for everyone involved.

Conclusion

Hybrid supercapacitors bridge the performance gap between batteries and traditional capacitors. They deliver high power density, exceptional cycle life, and wide temperature operation. These characteristics make them ideal for utility meters, industrial sensors, backup power systems, and other applications requiring pulse power delivery.

Selection requires careful analysis of voltage, capacitance, and current requirements matched to your specific load profile. When properly specified and integrated, these devices enable maintenance-free operation for 15-20 years in demanding environments. The technology continues maturing with improving performance and decreasing costs.

As more engineers discover these capabilities, adoption expands into new markets. If your application struggles with pulse power demands or temperature extremes, hybrid supercapacitor technology deserves serious consideration for your next design.
